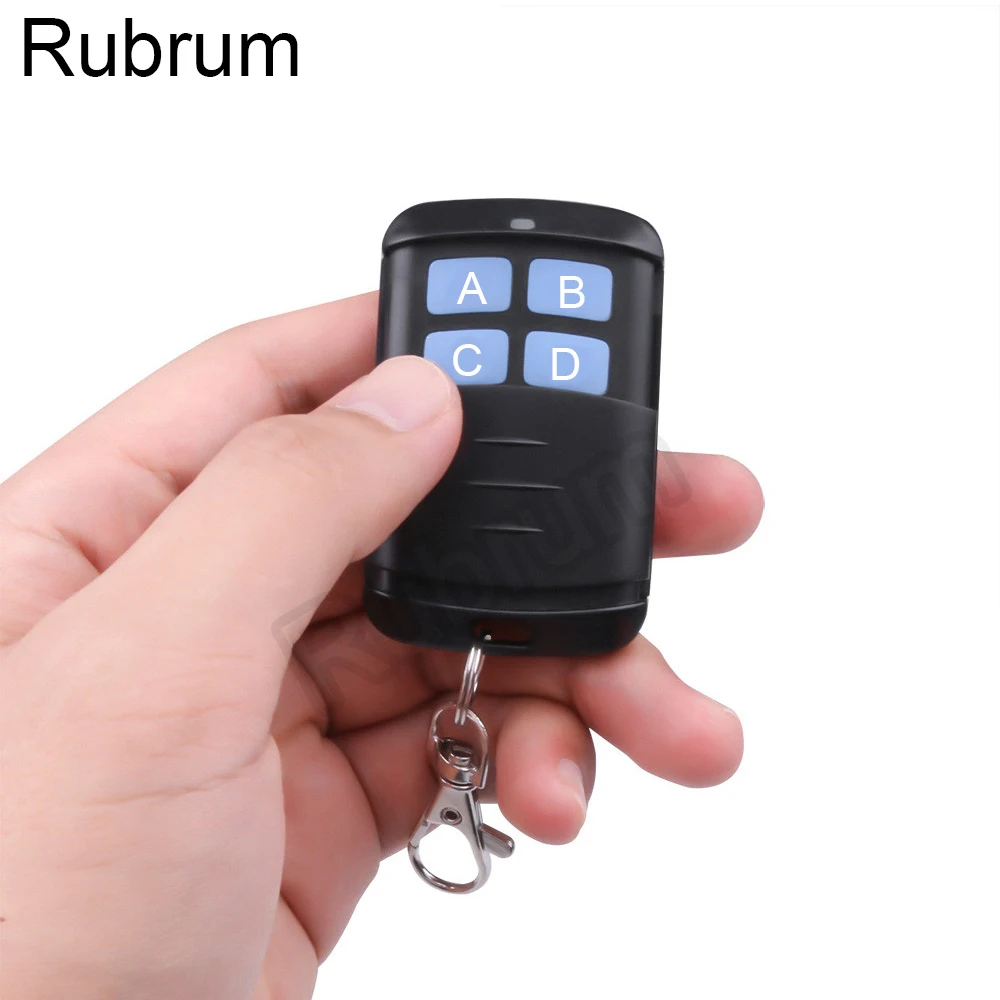

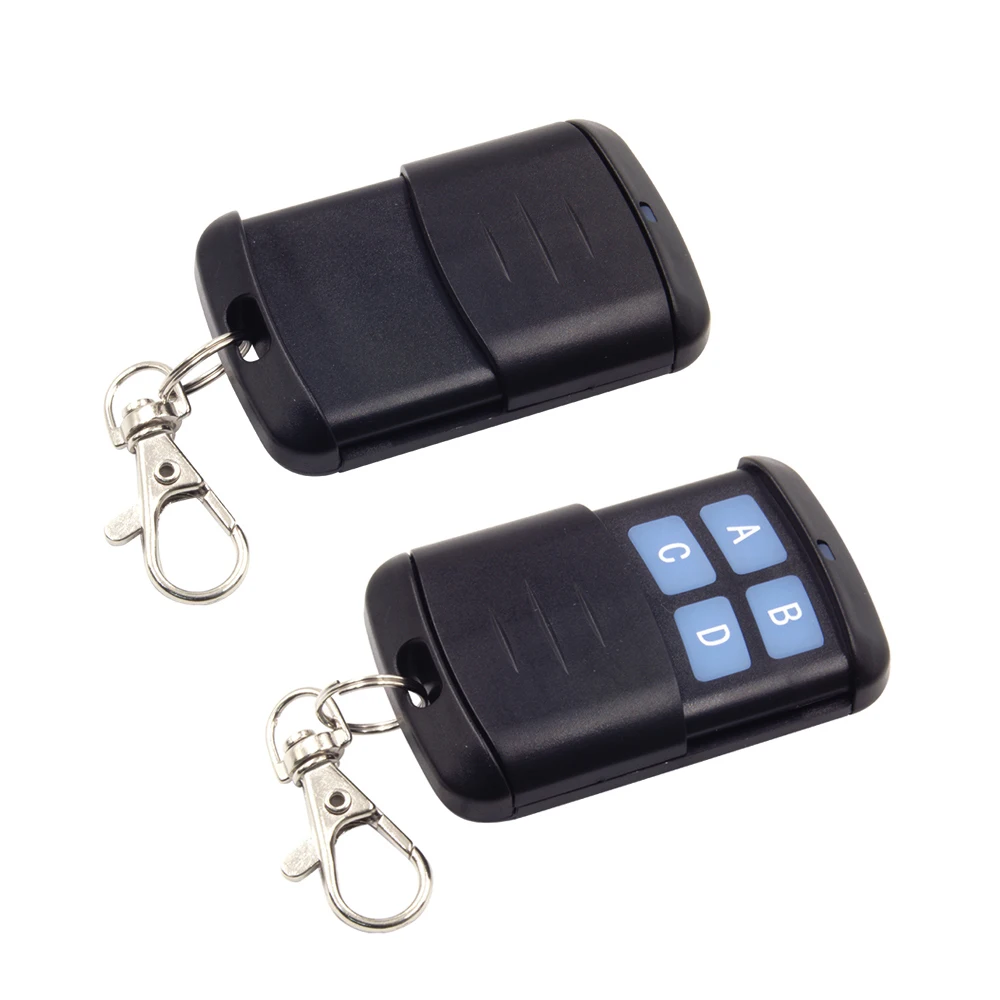

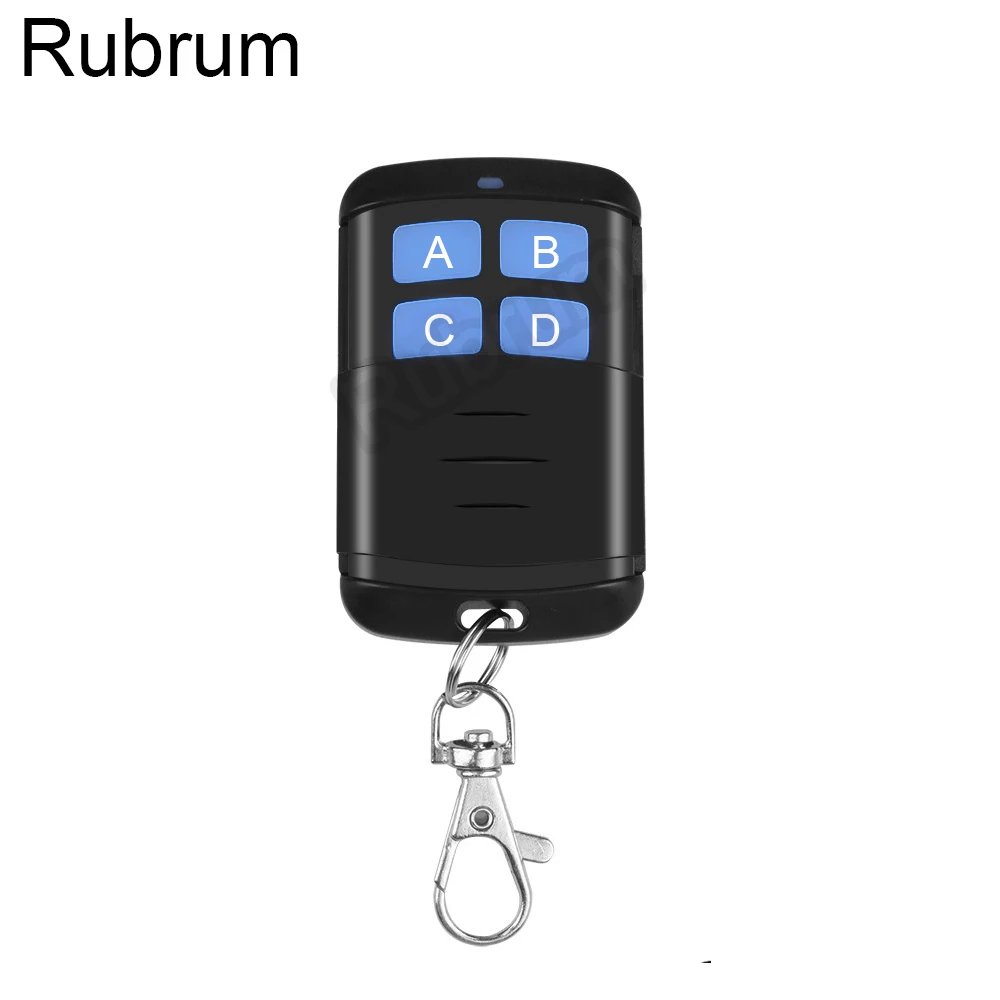

Specifications Of The DC 3V 4CH Transmitter:

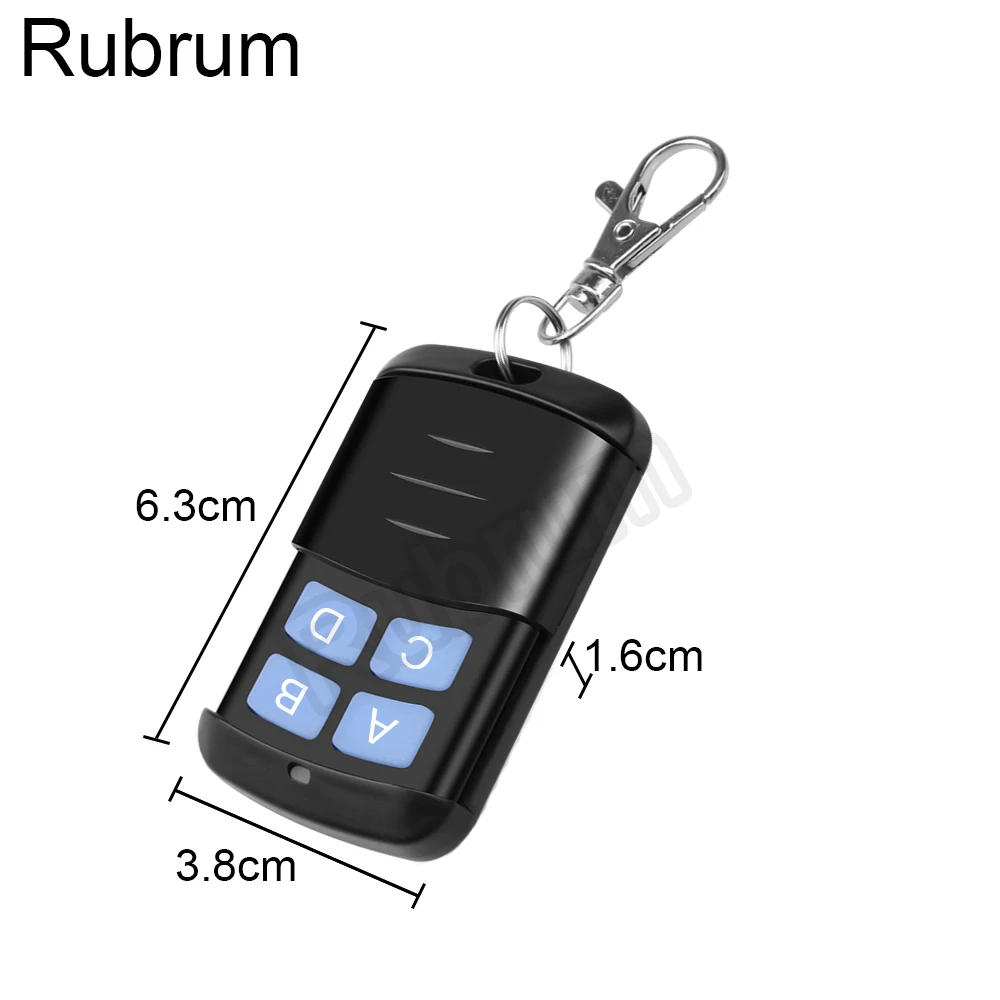

Operating RF Frequency: 433MHz. Coded System: 1527 Learning Code. Working Voltage: DC 3V. Working Current: <10mA. Transmitting Power: 10mW. Working Environment: -15 * 75 degrees Celsius. Wireless Operating Distance: 50m(Free Space). Color: Black. Package Size: 6.3 * 3.8 * 1.6cm / 2.48 * 1.49 * 0.63in². Package Weight: 25g/0.88oz.

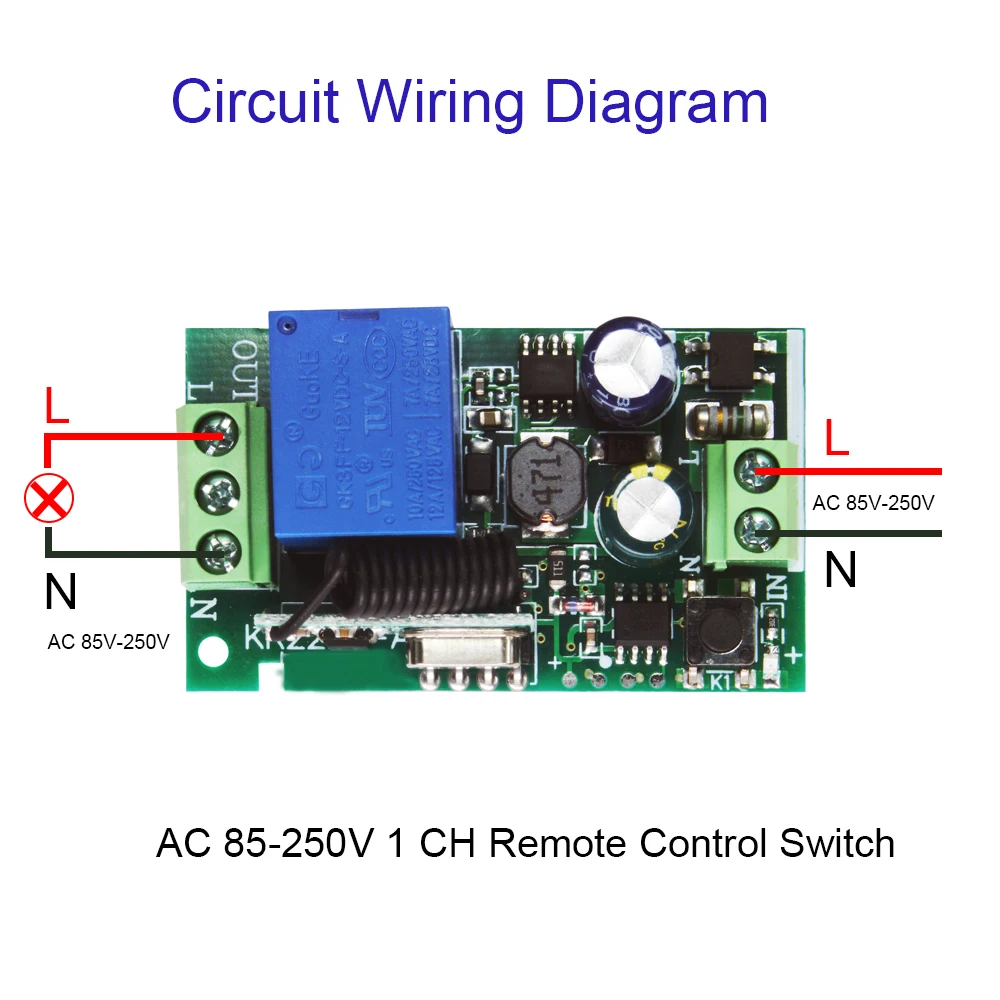

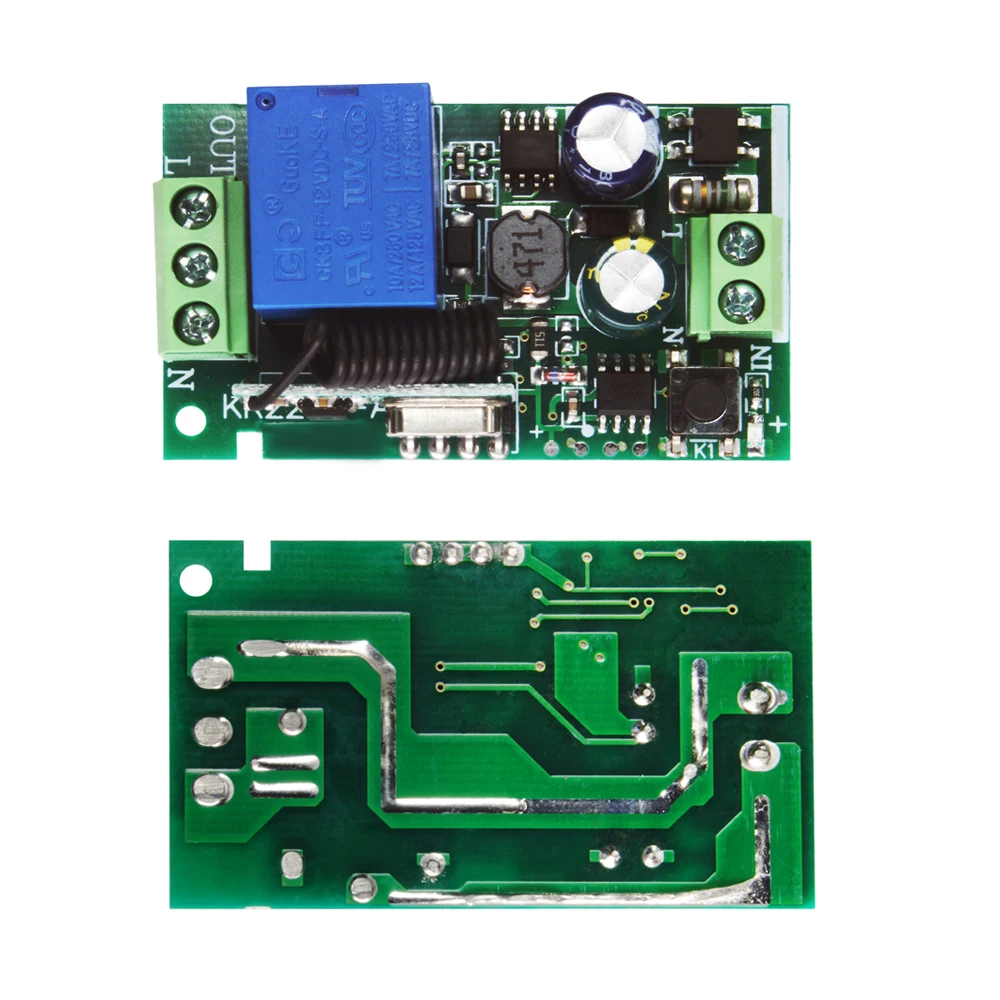

Specifications Of The AC 220V 1CH Receiver:

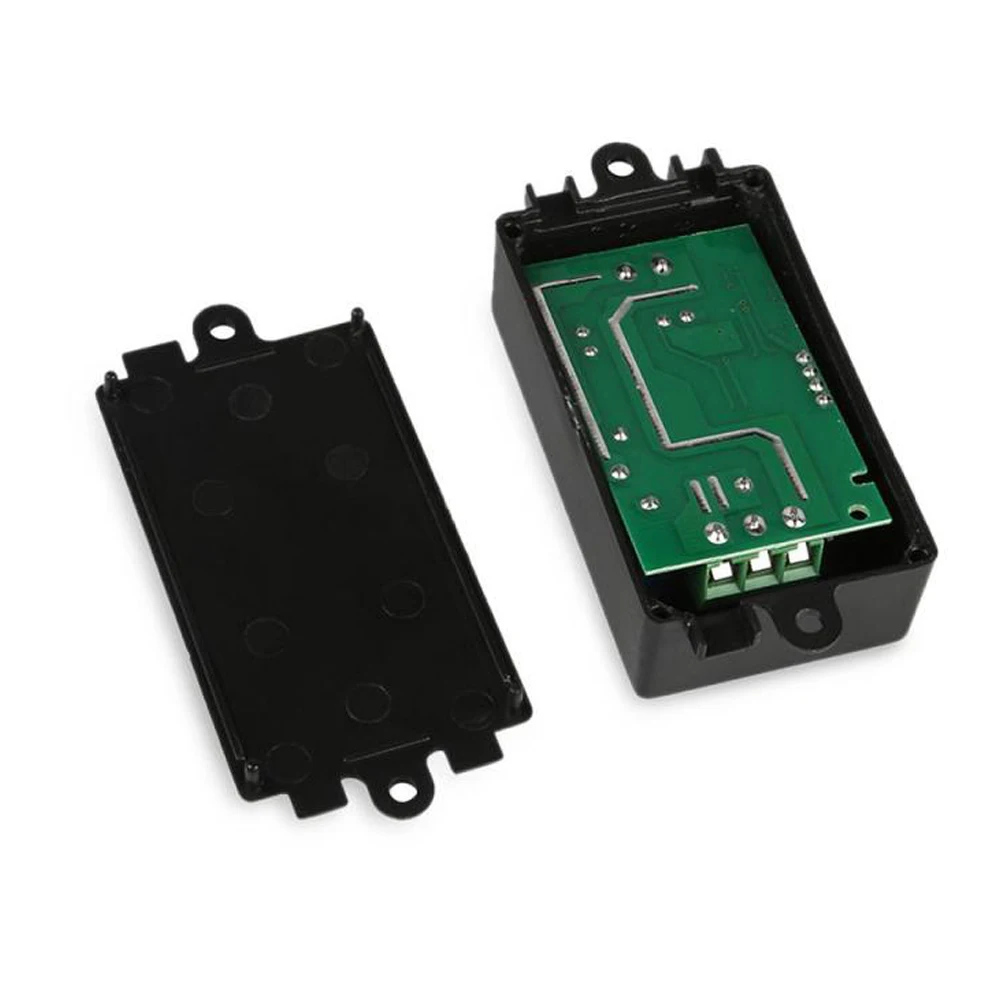

Input Voltage: AC 85V~250V. RF Frequency: 433MHz. Quiescent Current: 5mA. Modulation Mode: ASK. Receiving Sensitivity: >97dbm. Encoding Type: Intelligent Learning Code. RF Working Mode: Superheterodyne Reception. Working Mode: Momentary, Toggle and Latching. Remote Control Range: >50m (Free Space). Wired Connection Way: Fixed Wiring Pillar. Output Terminal: NO. NO: Normal Open(Output). Color: Green(PCB Board), Black (Outside Shell).

Notice:

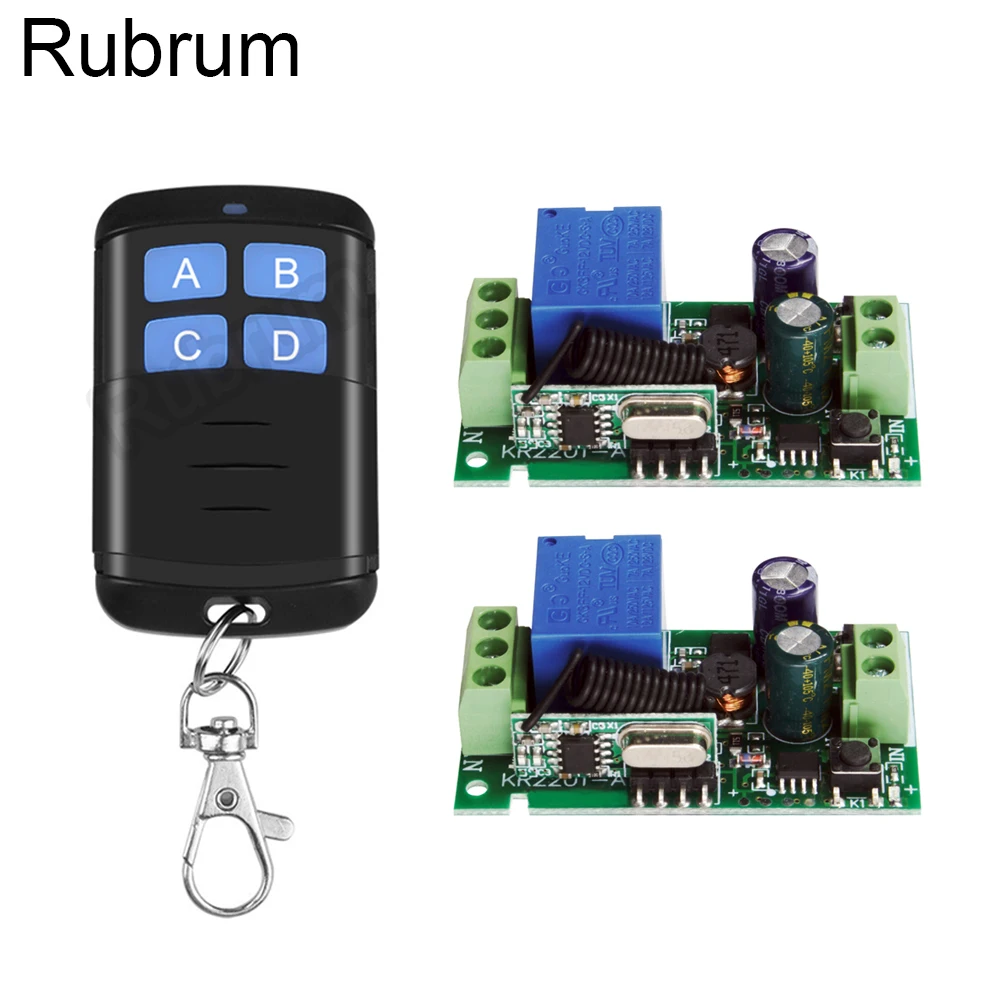

Different Options Include Different Packages.

Operation Introduction:

About Working Mode:

Learning The Code (momentary):

Press the learning key once, the LED on the Receiver will flash once. When the LED switches on, press any button on the remote control, the LED on the Receiver will flash 3 times and switches off. Indicates that they are successfully paired.

Learning The Code (Toggle):

Press the learning key twice, the LED on the receiver will flash twice. When the LED switch on, press any button on the remote control, the LED on the Receiver will flash 3 times and switches off. Indicates that they are successfully paired.

Learning The Code (Latching):

Notes: Latching mode require 2 different buttons, the first one for "ON", the second one for "OFF". For example: button A = ON, button B = OFF. Push the learning key on the receiver 3 times, initiate latching mode setting. Wait for a moment, the LED indicator on the receiver will flash briefly and switches off. Push the remote button A, LED flashes 5 times. Push the remote button B. LED flashes 5 times. 3 seconds later, the LED indicator will switch on again, indicates that the remote control and the receiver are successfully paired. A = ON, B = OFF.

Receiver Code Resetting/Clearing:

Push the learning button on the receivers 8 times, the codes will be cleared. After clearing the code, all the remote controls need to be re-paired in order to control the receiver again.

NOTES:

1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity. 2. Please promptly change battery when remote control voltage is insufficient (when the battery voltage is insufficient, generally get close transmitting). 3. Please pay attention to avoid metal mask,large equipment,strong interference electromagnetic filed when using wireless RF products, and avoid too short distance between the remote control and receiver board. 4. Please avoid abnormal using of the product.Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe.
