Universal 433MHz Dual Channel Remote Control light car Switch AC 85V 110V 220V 250V learning code 1527 Relay Receiver for 433 MHz RF Transmitter

Features:

*Support Multiple Working Mode: Momentary, Toggle and Latching Mode.
*Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).
*Support storing the quantity of remote control: 25 Pcs(NOTE: The system can only store 25 pcs of remote controls, if the remote get more than 25 pcs, the initial remote control will be lost).
*RF Working Mode: Superheterodyne Reception(Modulation Mode: ASK).
*Perfect suitable for remote control of roller shutter door, garage door, electrically operated gate and other telecommand equipments.

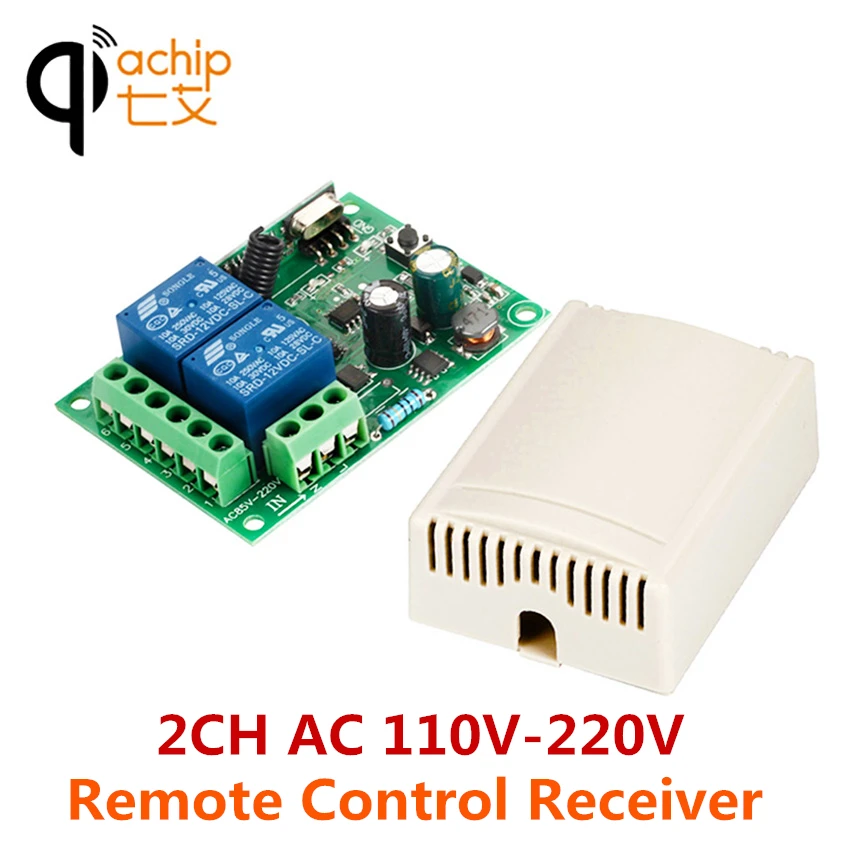

Receiver Specifications(Technical Index):

• Model: KR2202-4
• Product Type: Dual Channel Remote Control Switch
• Encoding Type: Intelligent Learning Code
• RF Working Mode: Superheterodyne Reception
• Modulation Mode: ASK
• Working Mode: Momentary, Toggle and Latching Mode.
• RF Frequency: 433MHz
• Input Voltage: AC 85V~250V
• Standby Current:<8.5mA
• Receiving Sensitivity: >97dbm
• Remote Control Range: >50m (Free Space)
• Wired Connection Way: Fixed Wiring Pillar

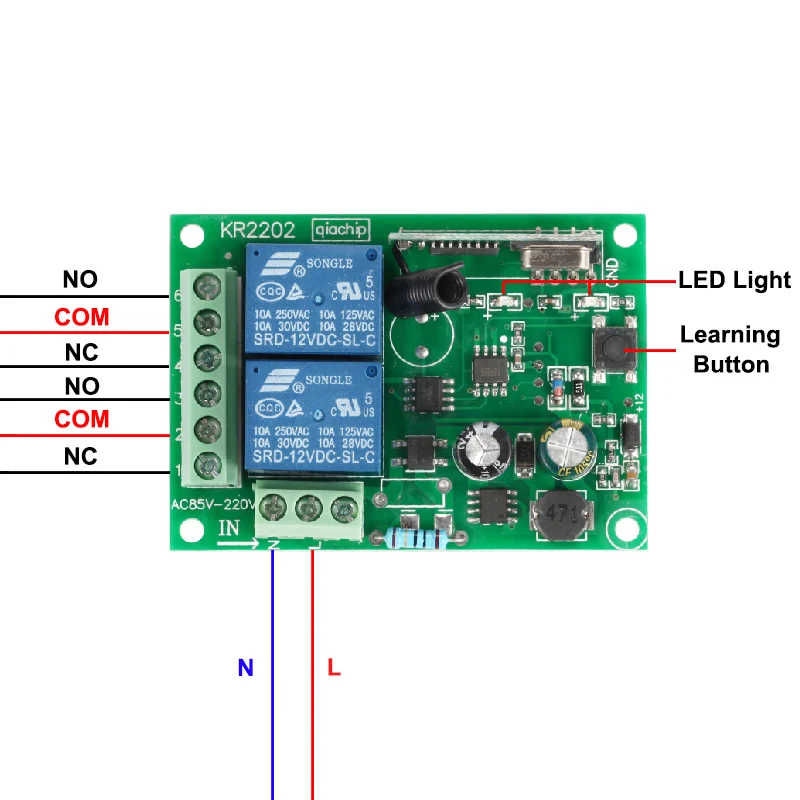

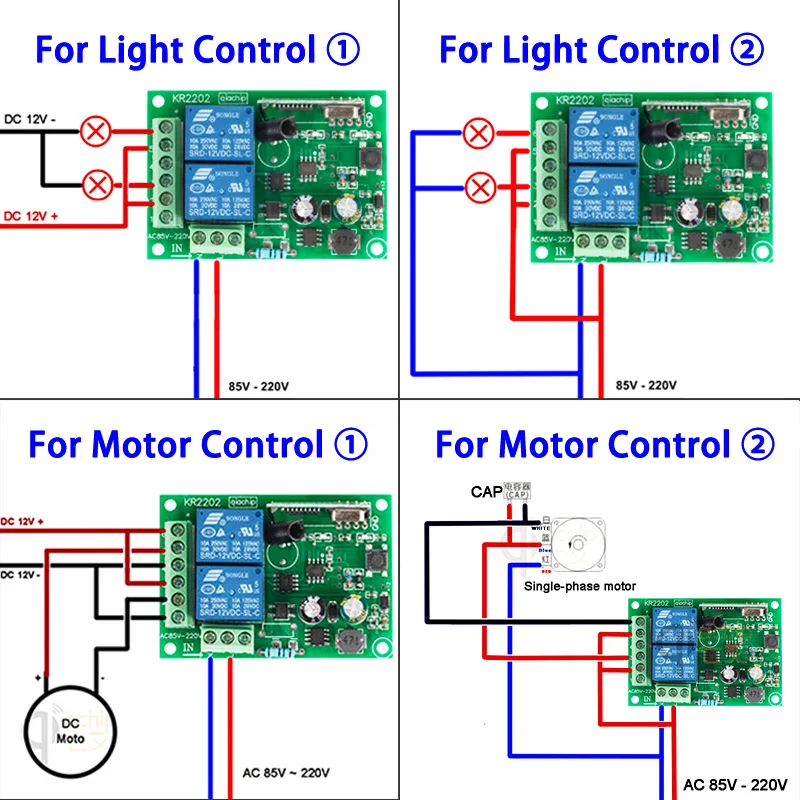

• Output Terminal: NO, COM, NC
• On-off Output (Wire Port): NO(Normal Open), COM(Commonality End), NC(Normally Closed End).
• Color: Green (PCB Board), White (Outside Shell)

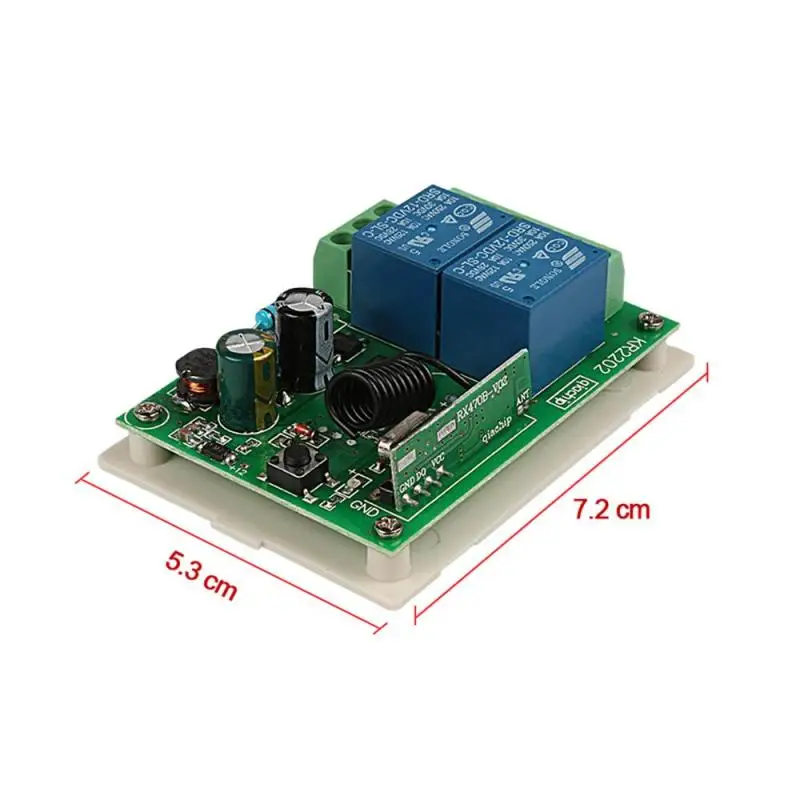

• Circuit Board Size: 7.3 * 5.2 * 2.5cm/ 2.87 * 2.0 * 0.98in
• Circuit Board Weight:40.6g/1.43oz
• Package Size:7.5 * 5.5 * 3.0cm / 2.95 * 2.16 * 1.18in
• Package Weight:57.2g/2.0oz

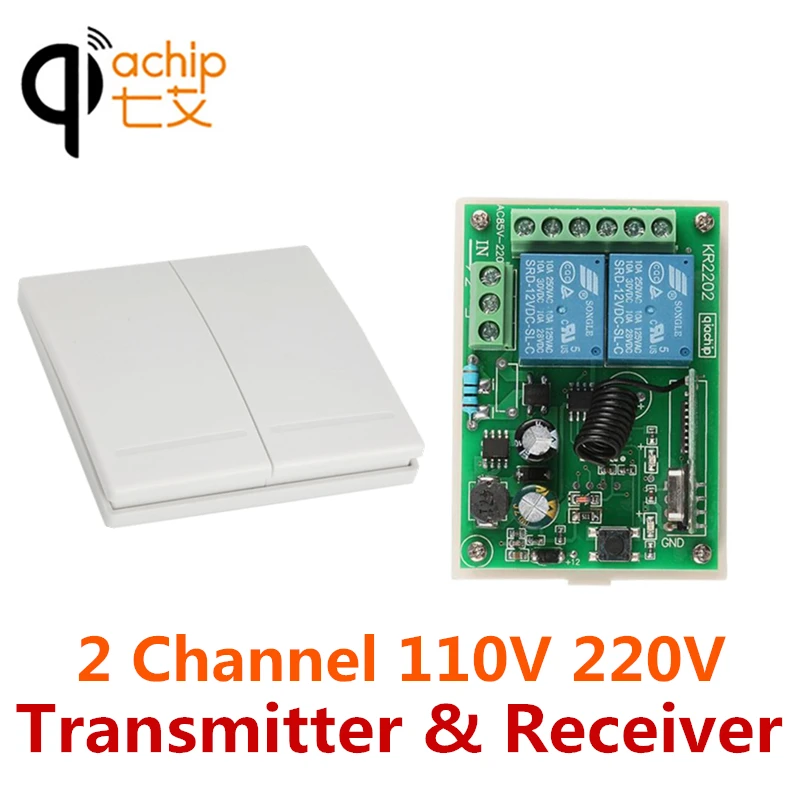

Transmitter Specifications:

• Operating Frequency: 433MHz

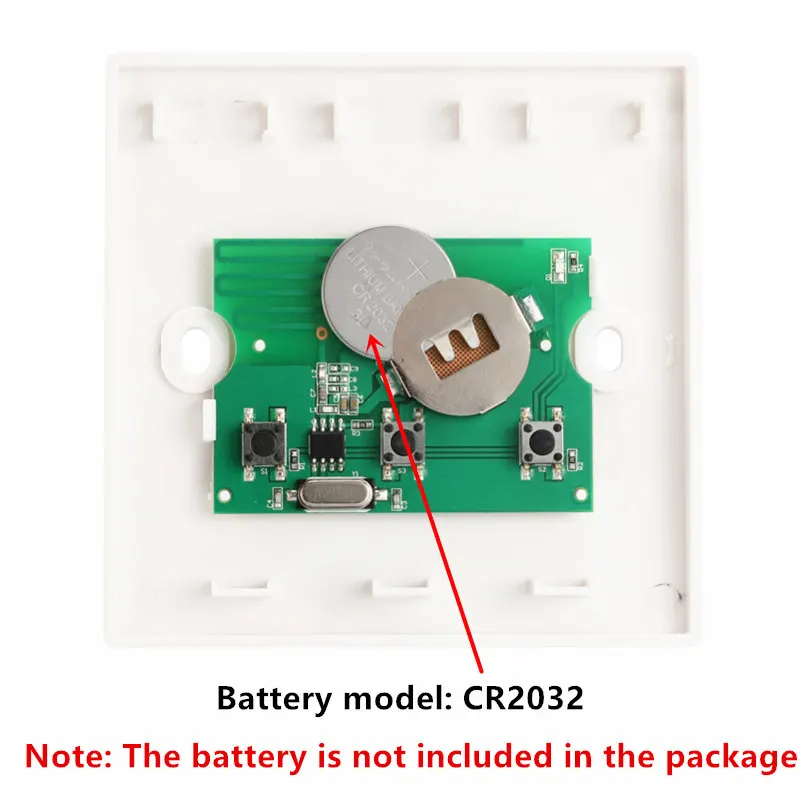

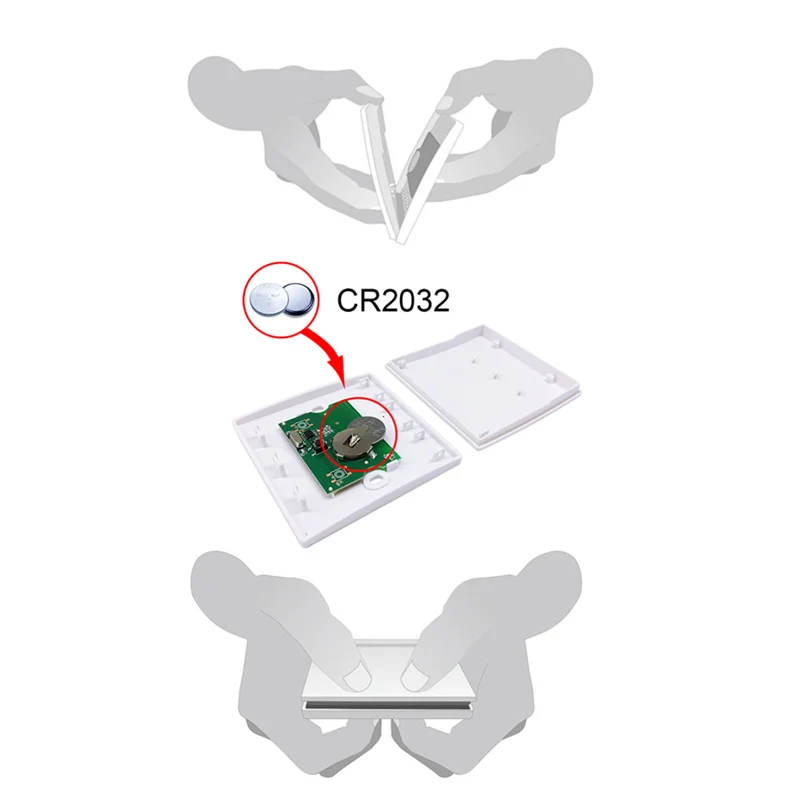

• Battery Model: CR2032 (Package Not included battery)
• Dimensions: 86mm x 86mm x 13mm
• Distance: indoor (20 meters) outdoor (80 meters)
• Current:10A
• Working Current:10 mA

Operation Introduction:

About Working Mode:（Watching the video will be easy to understand.）

Momentary: Push the remote button, the relay connects, release the remote button, the relay dis-connects.

Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay dis-connects.

Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Clearing the Code:

1. Push the learning button on the receivers for 8 times, the codes will be cleaned.
2. After clearning the code, all the remote control cannot work any more.

Learning the code: (momentary)

1. Press the learning key on the receiver 1 times,  Wait for a moment, the LED will be off, it comes into learning state.
2. Press the remote button, LED indicator on the receiver board will flash then come off.
3. After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the code: (Toggle)

1. Press the learning key on the receiver 2 times,  Wait for a moment , the LED will be off, it comes into learning state.
2. Press the remote button, LED indicator on the receiver board will flash then come off.
3. After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the code:(Interlocking)

Note: When you choose for Interlocking mode, in order to learn more remote control, you need to learn two different button, the first time learnt is for “ON”, the second time learnt for “OFF”.For example : button A = ON , button B = OFF

1. Push the learning key on the receiver 3 times, the LED (on the Receiver) will blink 3 times.
2. When the LED is on, press the button of the remote control (You want to let it learn). Push the remote button A, LED flash for 3 times. Push the remote button B, Led flash for 3 times. After 3 seconds , the LED indicator will be off , Learning to succeed.
3. A = ON , B = OFF
