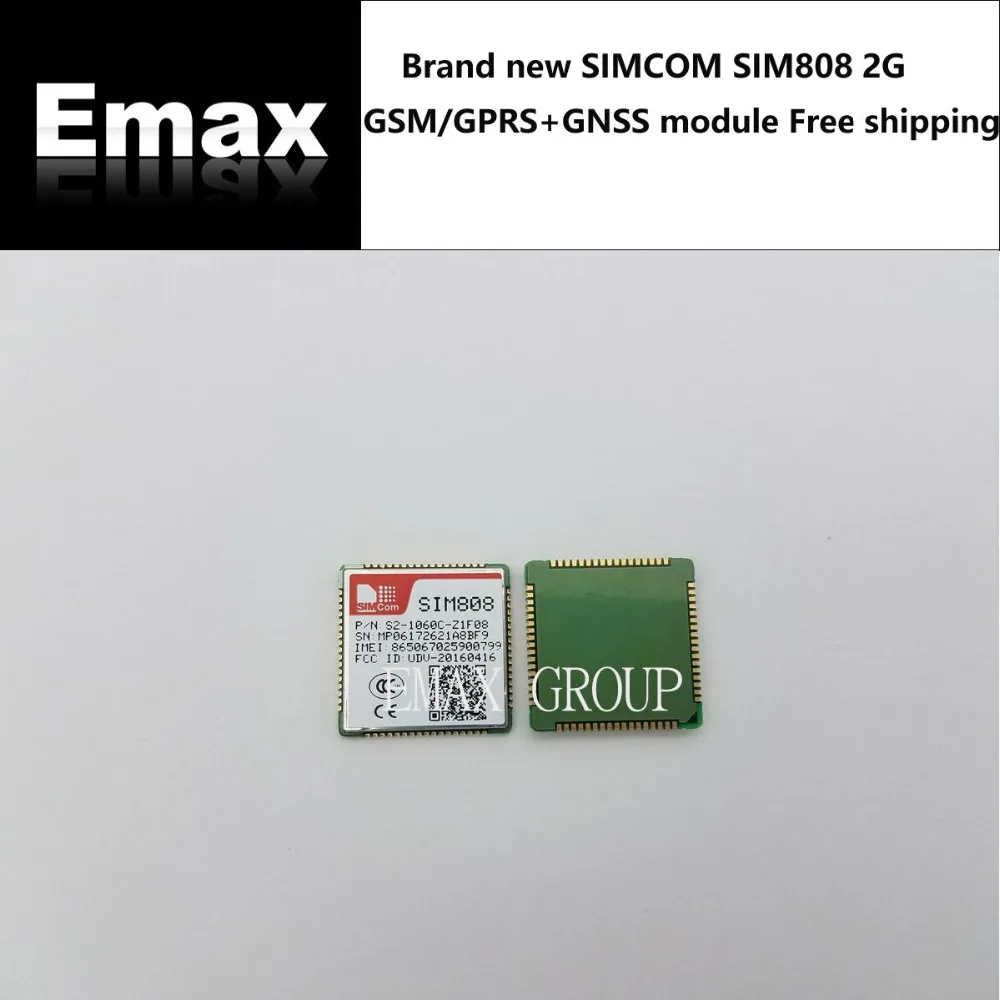

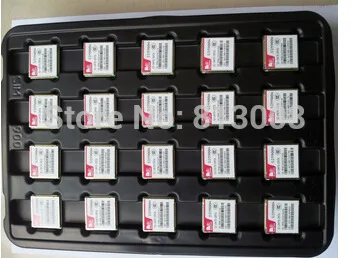

2PCS/LOT SIM808 GSM/GPRS GPS Bluetooth Combo Wireless Module Guaranteed 100% New Original Genuine For satellite navigation stock |

2PCS/LOT SIM808 GSM/GPRS GPS Bluetooth Combo Wireless Module Guaranteed 100% New Original Genuine For satellite navigation stock |

1.Free Shipping 2PCS/LOT   SIMCOM SIM808 GSM GPS Bluetooth Combo  Wireless Module Guaranteed  100% New Original Genuine Distributor For satellite navigation in the stock Emax Group.

(We can provide After-Sale Technical Support if you have any troubles to use this Module )

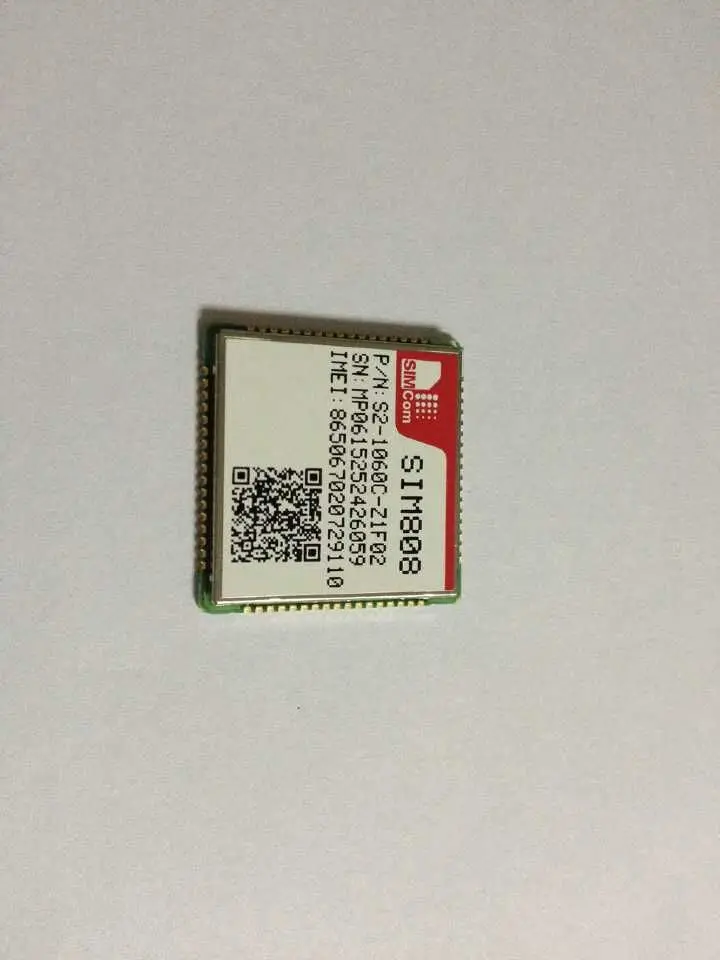

SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a SMT package will significantly save both time and costs for customers to develop GPS enabled applications. Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage



General features

•Quad-band 850/900/1800/1900MHz

•GPRS multi-slot class 12/10

•GPRS mobile station class B

•Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900MHz) – Class 1 (1 W @ 1800/1900MHz)

•Bluetooth: compliant with 3.0+EDR

•Dimensions: 24*24*2.6mm

•Weight: 3.3g

•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

•Supply voltage range 3.4 ~ 4.4V

•Low power consumption

•Operation temperature:-40°C ~85°C





Specifications for GPRS Data

•GPRS class 12: max. 85.6 kbps (downlink/uplink)

•PBCCH support •Coding schemes CS 1, 2, 3, 4

•PPP-stack

•CSD up to 14.4 kbps

•USSD Specifications for SMS via GSM/GPRS

•Point to point MO and MT

•SMS cell broadcast

•Text and PDU mode Software features

•0710 MUX protocol

•Embedded TCP/UDP protocol

•FTP/HTTP

•MMS

•E-MAIL

•DTMF

•Jamming Detection

•Audio Record

•TTS (optional)

•Embedded AT (optional) Compatibility

•AT cellular command interface



Specification for GPS Receiver type -22 tracking /66 acquisition -channel -GPS L1 C/A code Sensitivity -Tracking: -165 dBm -Cold starts : -147 dBm Time-To-First-Fix -Cold starts: 30s (typ.) -Hot starts: 1s (typ.) -Warm starts: 28s (typ.) Accuracy -Horizontal position : <2.5m CEP



Interfaces

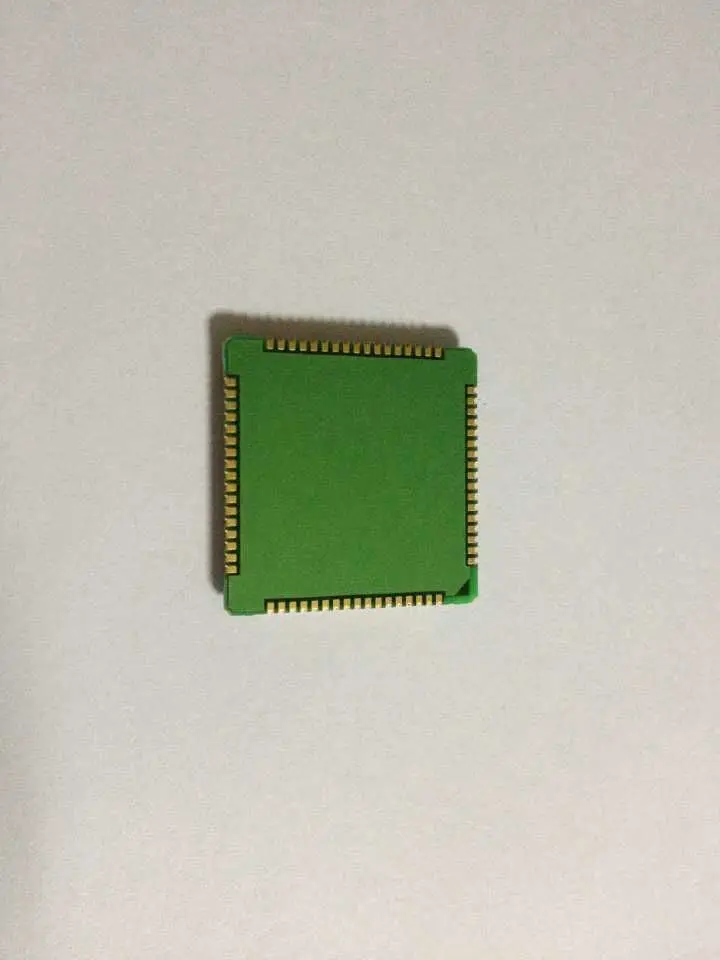

•68 SMT pads including

•Analog audio interface

•PCM interface(optional)

•SPI interface (optional)

•RTC backup

•Serial interface

•USB interface

•Interface to external SIM 3V/1.8V

•Keypad



interface

•GPIO

•ADC

•GSM Antenna pad

•Bluetooth Antenna pad

•GPS Antenna pad



Certifications(Plan):

•CE •GCF •FCC •ROHS •REACH
