Кабель Ethernet CAT6 длиной 0 5 м 100 шт. в партии сетевой кабель RJ45 позолоченная медная

Кабель Ethernet CAT6 длиной 0 5 м 100 шт. в партии сетевой кабель RJ45 позолоченная медная

• If you need more bulk purchasing, after place order please do not rush to pay, we will give you more discount

• This product can be customized

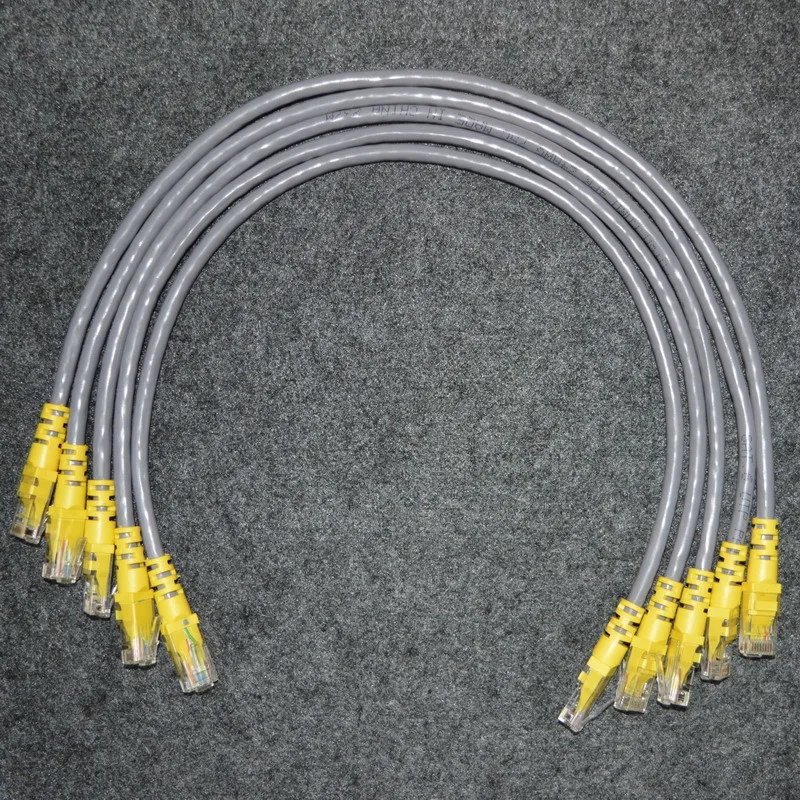

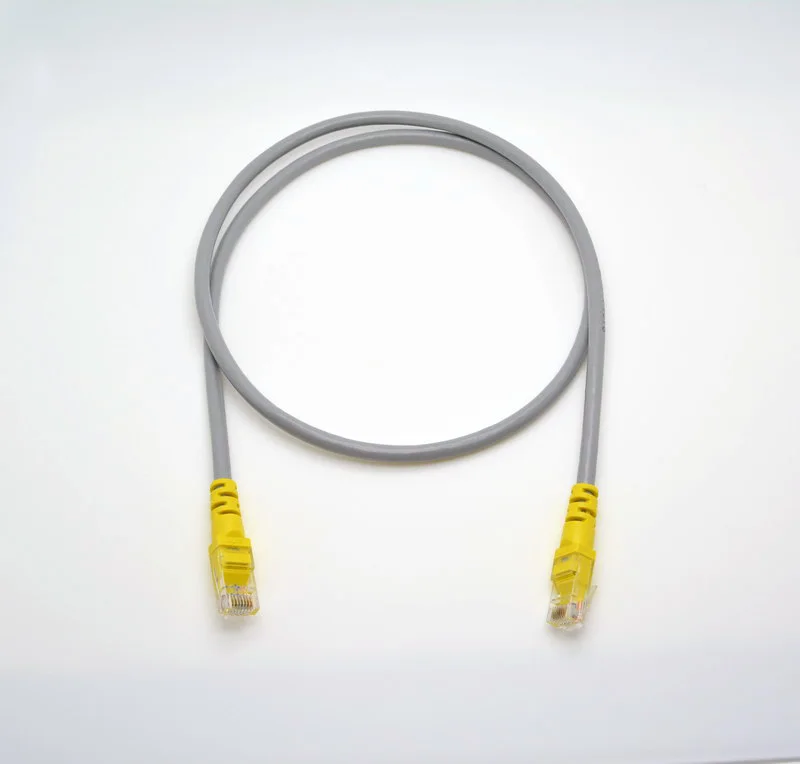

• Product Name:   CAT6 GigE Ethernet cable Carrier-class Patch Pannel patch cord

• Product features

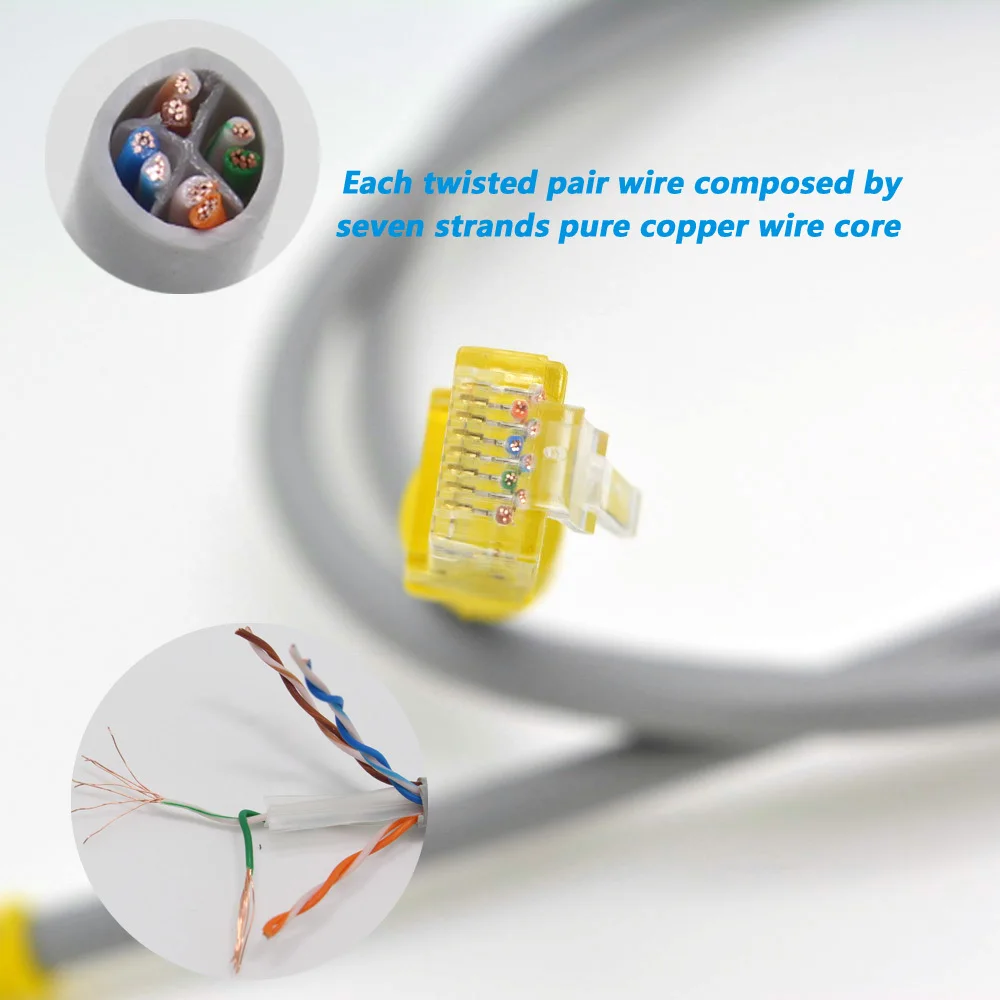

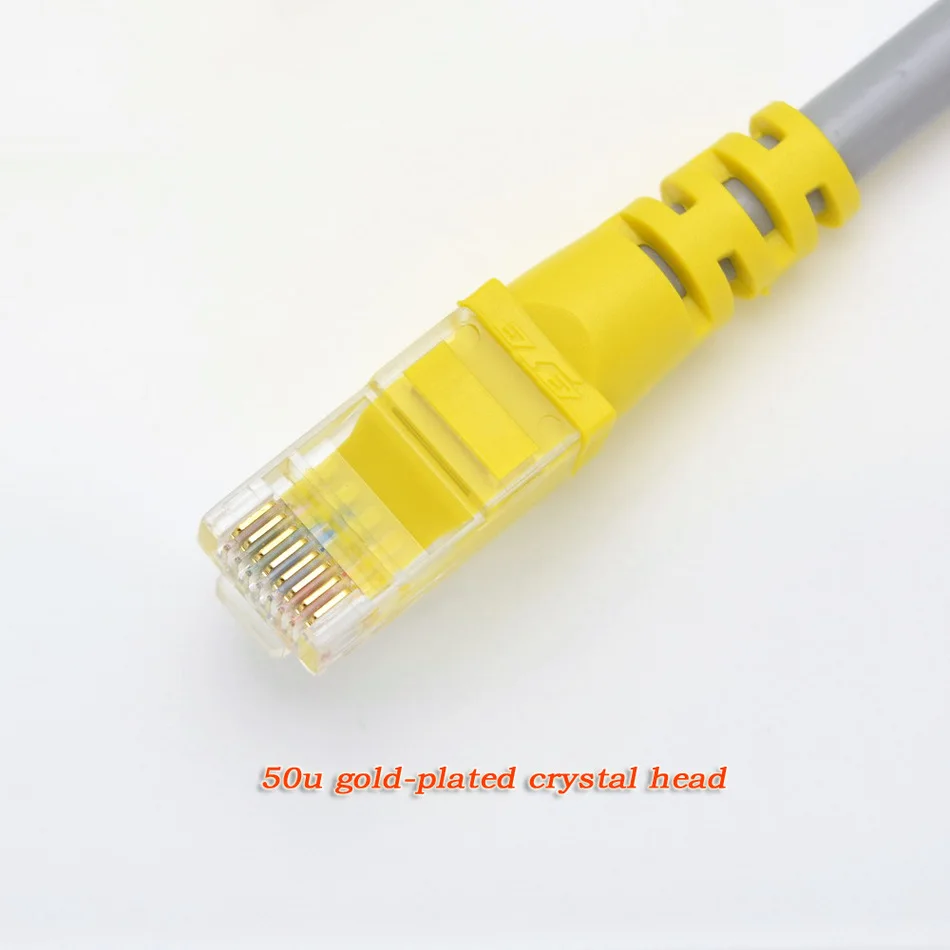

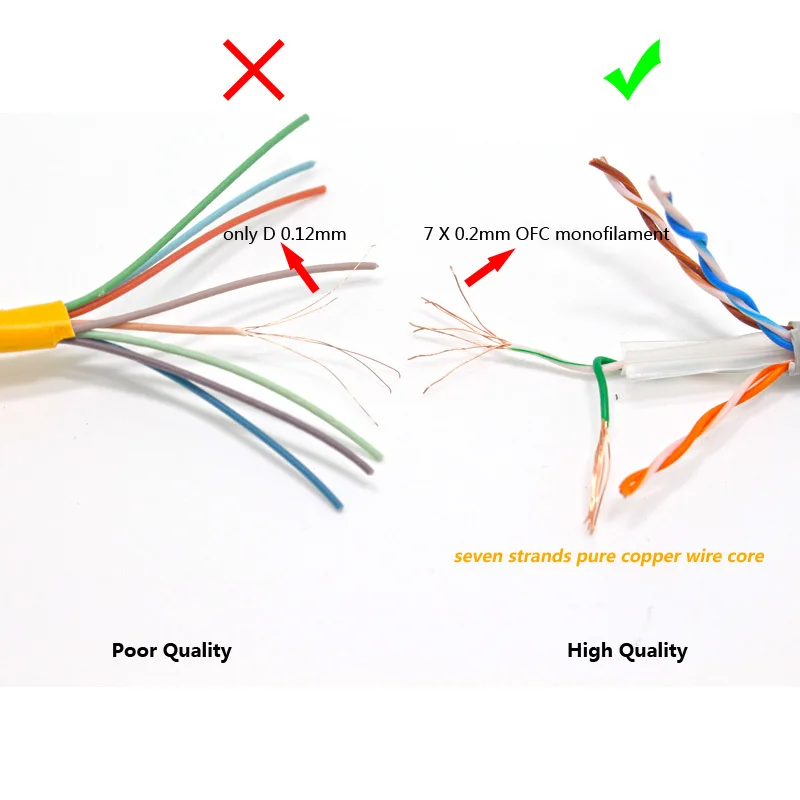

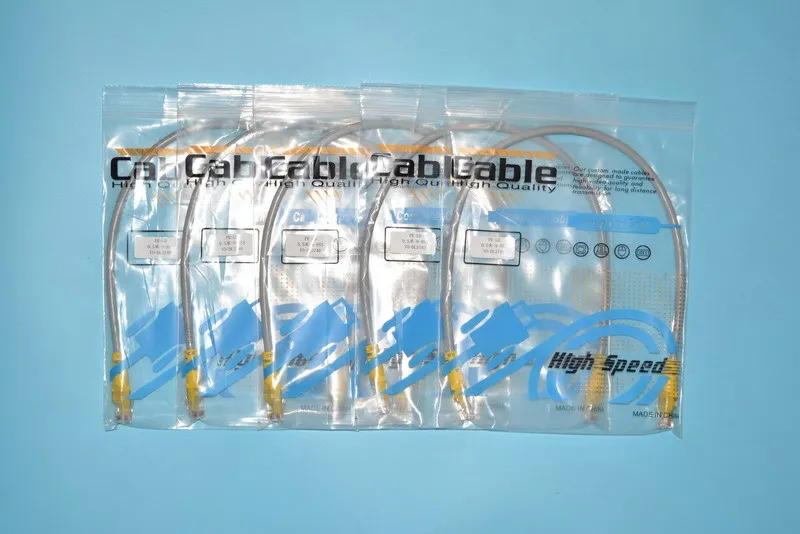

  Four pairs of unshielded UTP 0.5 m -90 meters can be customized. Network cable CAT5E CAT.6 UTP UTP cable 100 ohm four-wire twisted pair conductors have conventional copper, copper clad steel, copper clad aluminum different materials meet the quality requirements of different countries, the sheath is PVC / LSZH material Conductor General Specifications:  CONDUCTOR: 7 / 0.20MM CU (OR CCA / CCS) OD 5.5MM CONDUCTOR: 7 / 0.16MM CU (OR CCA / CCS) OD 5.0MM Crystal head gilded: 1U, 3U, 15U, 30U                  The following are detecting copper conductors: Maximum DC resistance: 9.38Ω / 100m   Impedance: 100 (+/-) 15Ω Maximum DC resistance unbalance line: ≤5% Maximum Capacitance: 5.6nF / 100m  Maximum working capacitance unbalance (line pairs and ground): 330pF / 100m NVP: 69% Standards compliant ANSI / TIA / EIA568B.2, Cat.5e ISO / IEC11801: 2002, CLASS D Support Application: 10Base-T, 100Base-TX, 1000Base-T, 155 / 622Mb / s ATM Based on the standard UTP cabling future applications: Install the minimum bend radius (mm): 30, maximum tension (N): ≤90, operating temperature: -20 ~ 60 Celsius, installation temperature: 0 Celsius~ 60 Celsius Packing: Neutral PE bags; Purpose: Digital communication horizontal twisted pair cables used in building cabling system Workspace communication leads to patch panel cabling between the terminal and the transfer between and residential cabling system leads to end-user communication between the patch panel cabling , to meet the 155MHz data communication, using double-shielded, so that the whole channel anti-interference ability, to ensure the correct transmission of high-intensity electromagnetic interference environment data information. Suitable for military, hospitals, banks and other financial system with special high-performance requirements of the environment. Standard wiring length of 90 meters, using T568A or T 568B wiring termination mode, the terminals using shielded parts and grounded to ensure transmission channel link under the protection of the shield. According to ANSI / TIA / EIA-568-B standard color coding color. 1000BASE-T Ethernet (1000Mbps) 155MbpsATM, 100MbpsTP-PMD, 100Mbps Ethernet (100BASE-T) and other transfer rate up to 622Mbps system applications 4Mbps and 10Mbps Ethernet 16Mbps token ring network

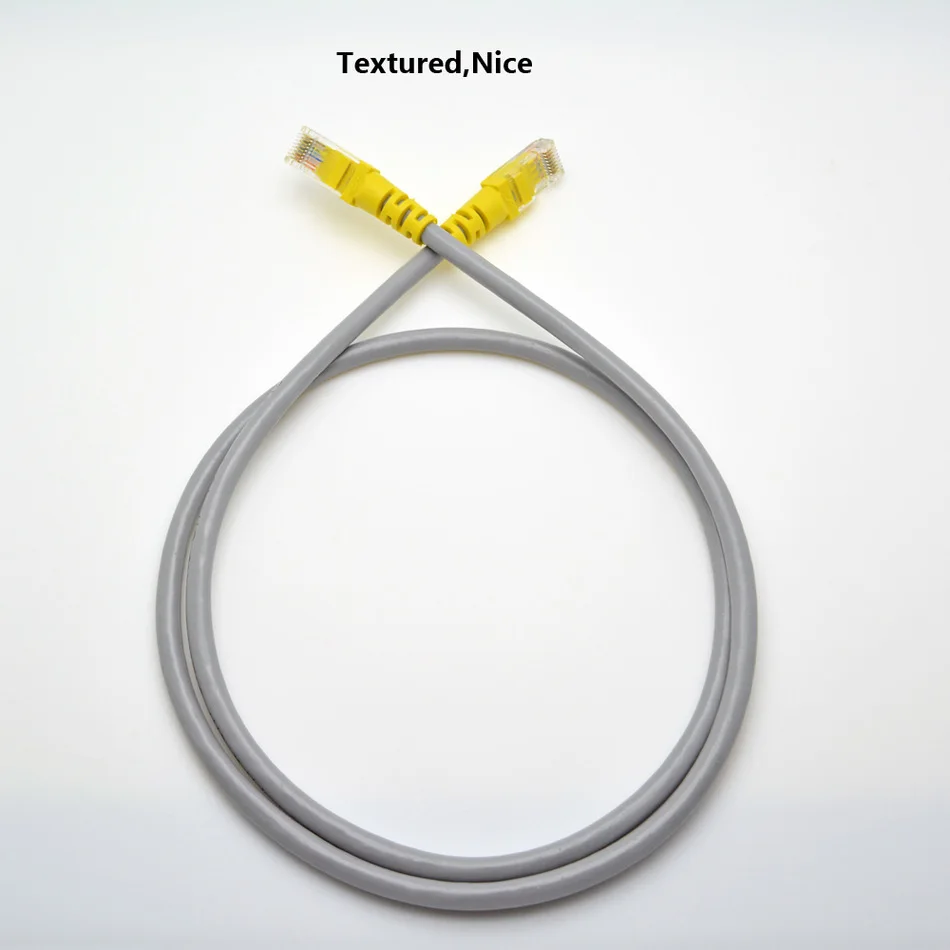

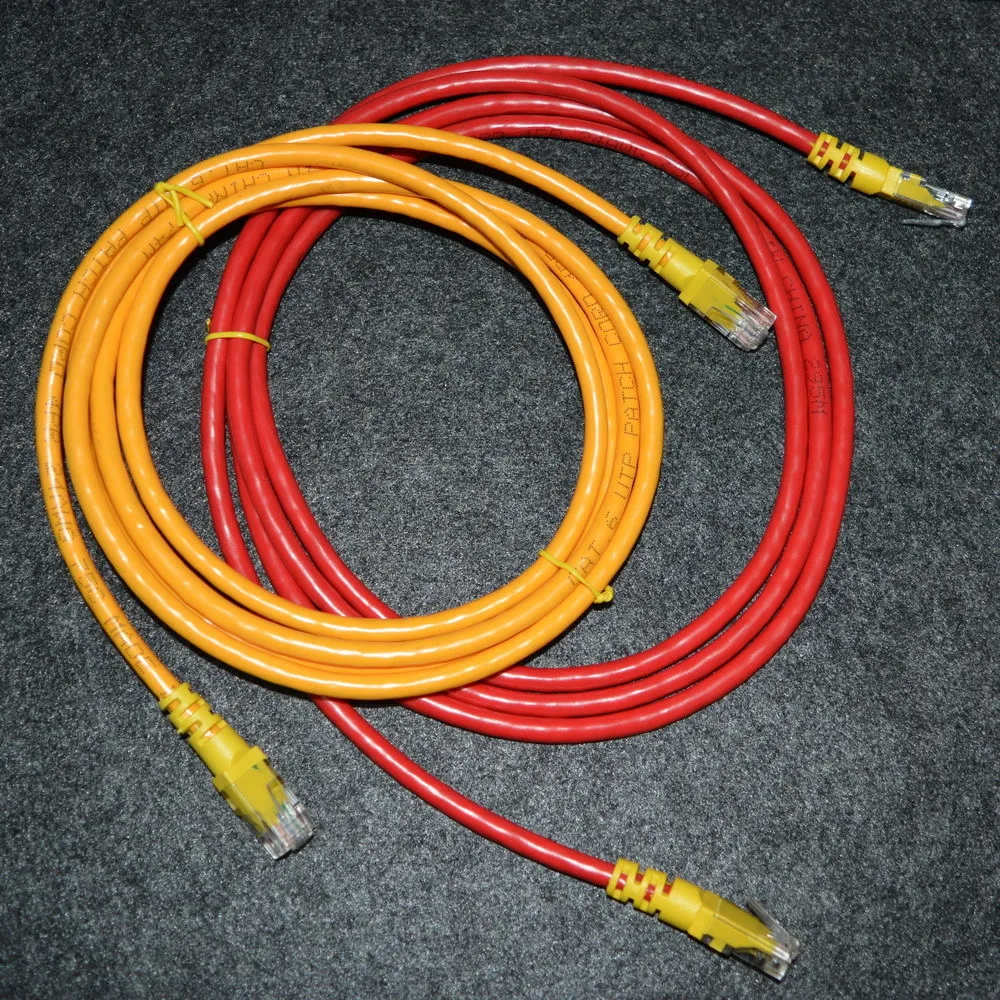

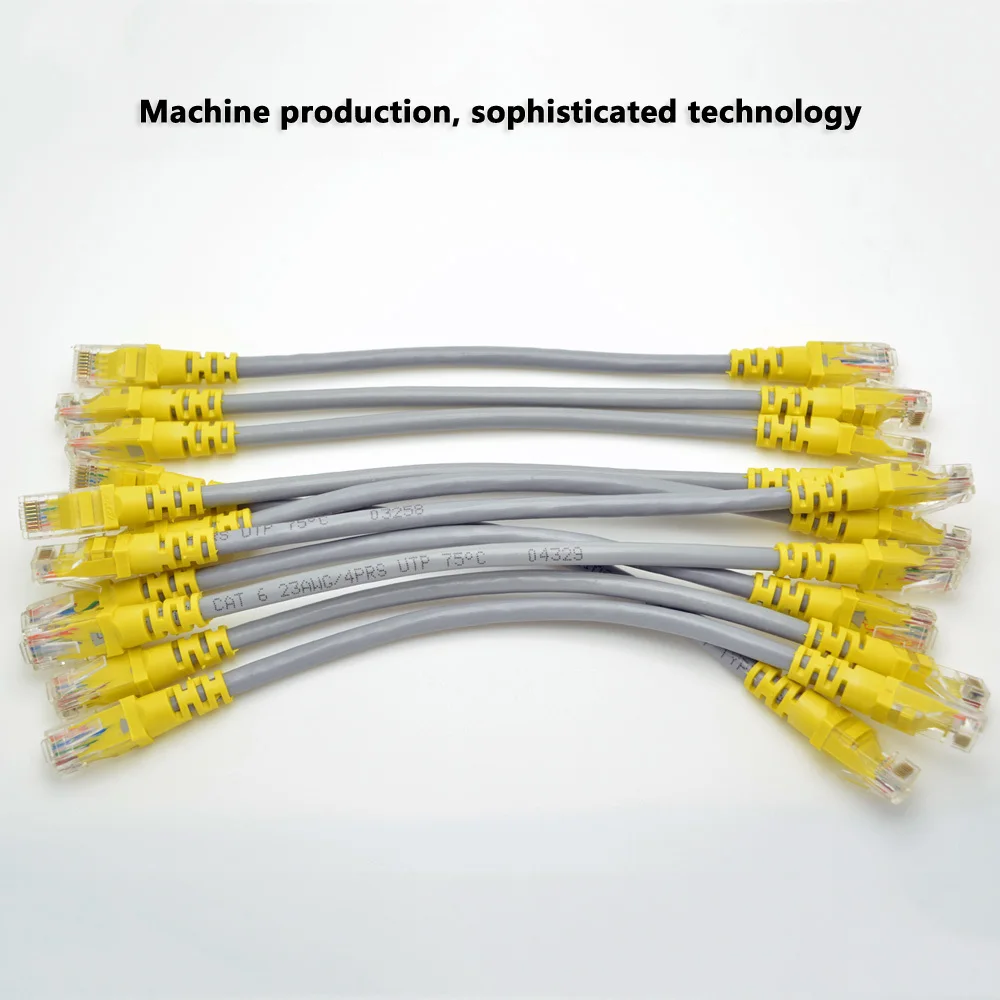

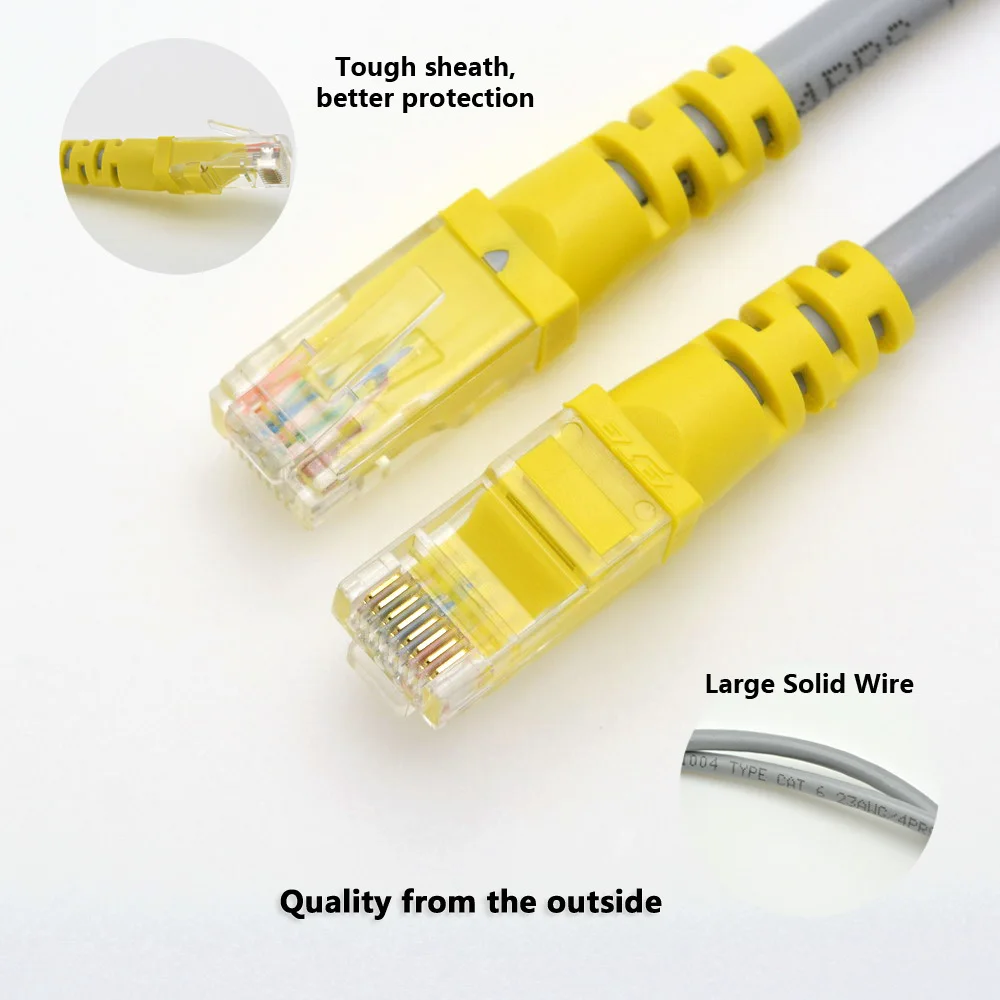

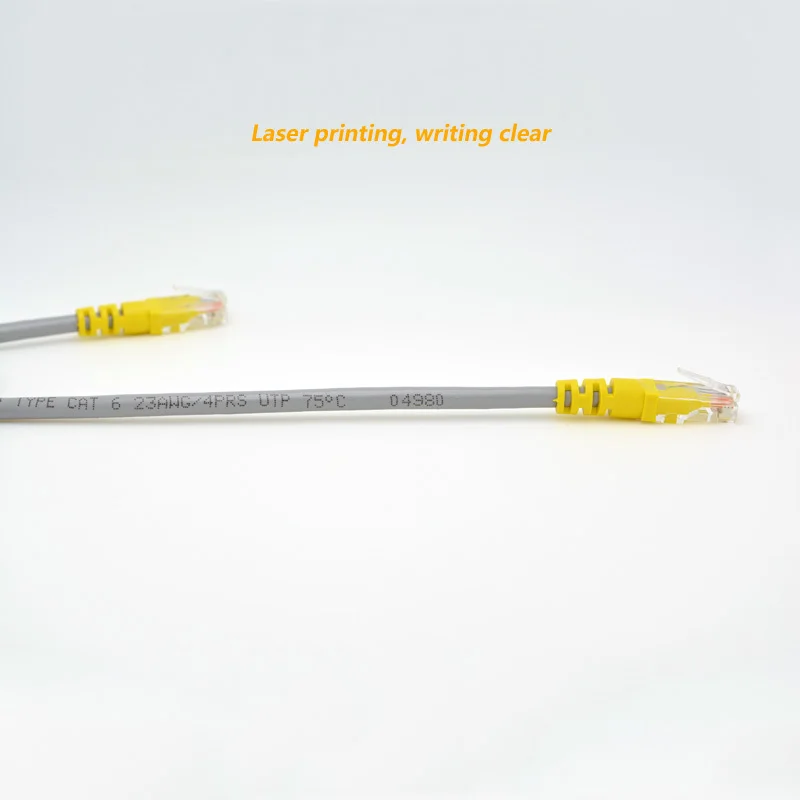

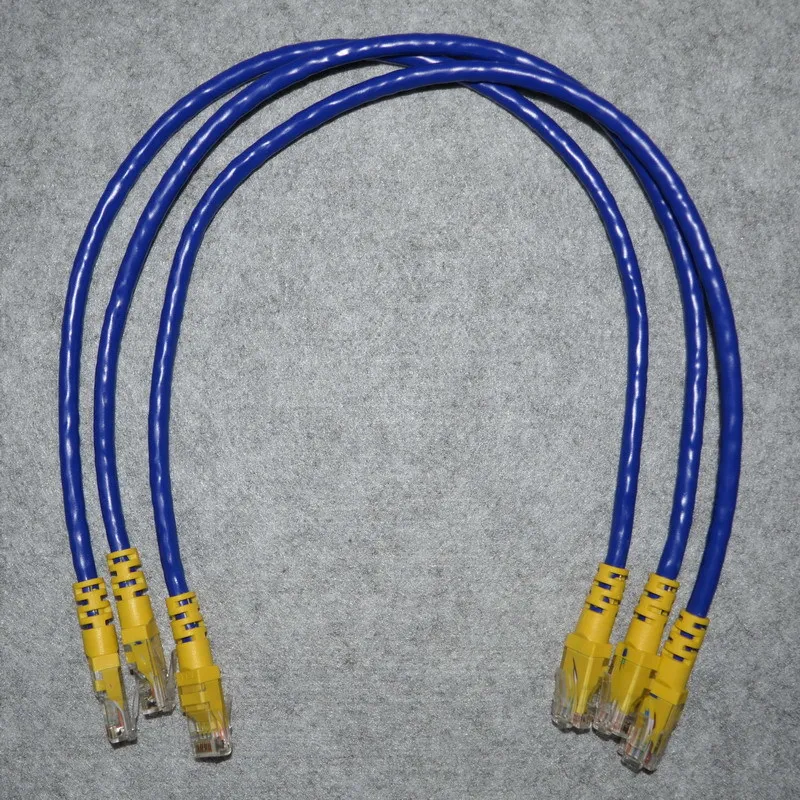

• Product Pictures and Graphic Instructions
