Световой дисплей в американском стиле, ручная высоконагрузочная термопресс-машина с плоским давлением и автоматическим счетчиком для футболки, сумки, пазлов и стекла.

---

Description

LED Display American Style Manual High Pressure Flat Shaking Heat Press Machine With Auto-counter for T-shirt Bag Puzzle Glass Wood Rock Metal Photo Printing American Style Heat Press Machine Main Features: 1.The heated plate adopted by special high precision line-tube Technology,effectively keep temperature equilibrating and stabilizing; 2.Color LED screen temperature and time display,the temperature readout tolerance is ±1~2℃; 3.Spiral pressure design, can adjust to the required working pressure randomly; 4.Improved under support plate, more convenient to fix the cloth, 6cm adjustive range, process wider products.

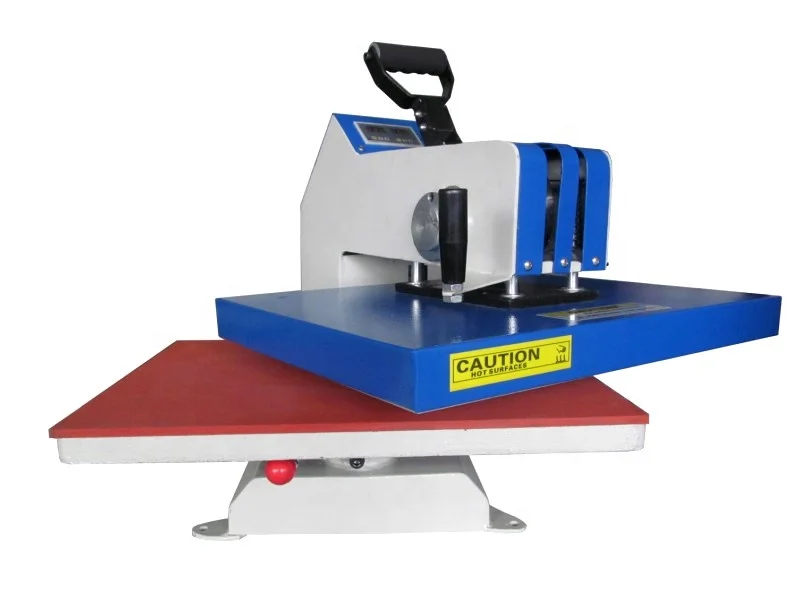

NEW American Style Heat Press Machine
machine technical & specifications:
Model	Size	Voltage	Power	Temp	Time	Packing size	Weight

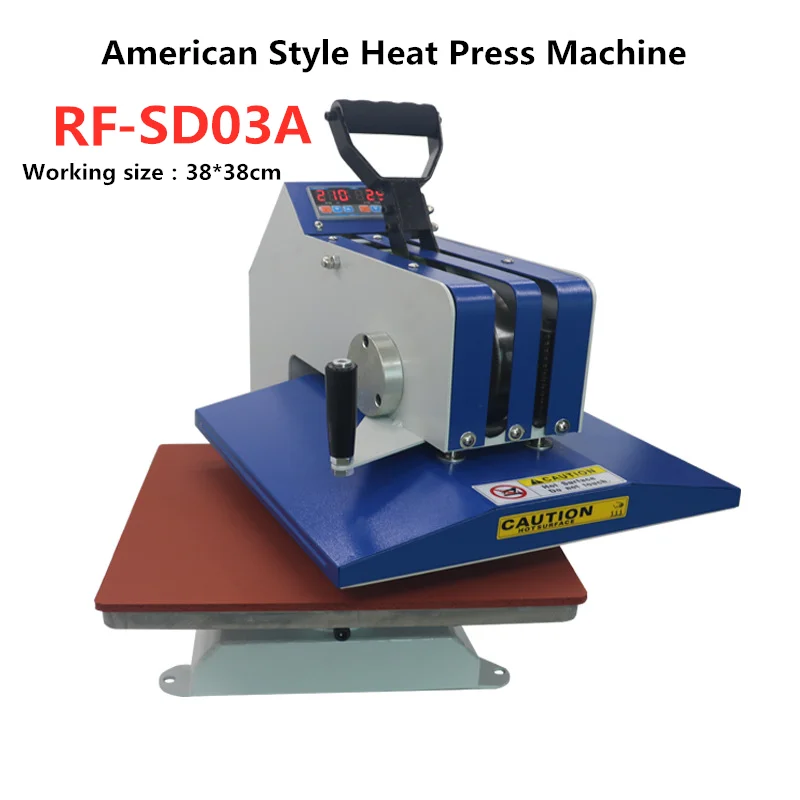

RF-SD03A	38x38cm	110v/220v	2200W	0-399 °C	0-999Sec	74*47*59cm	50kg

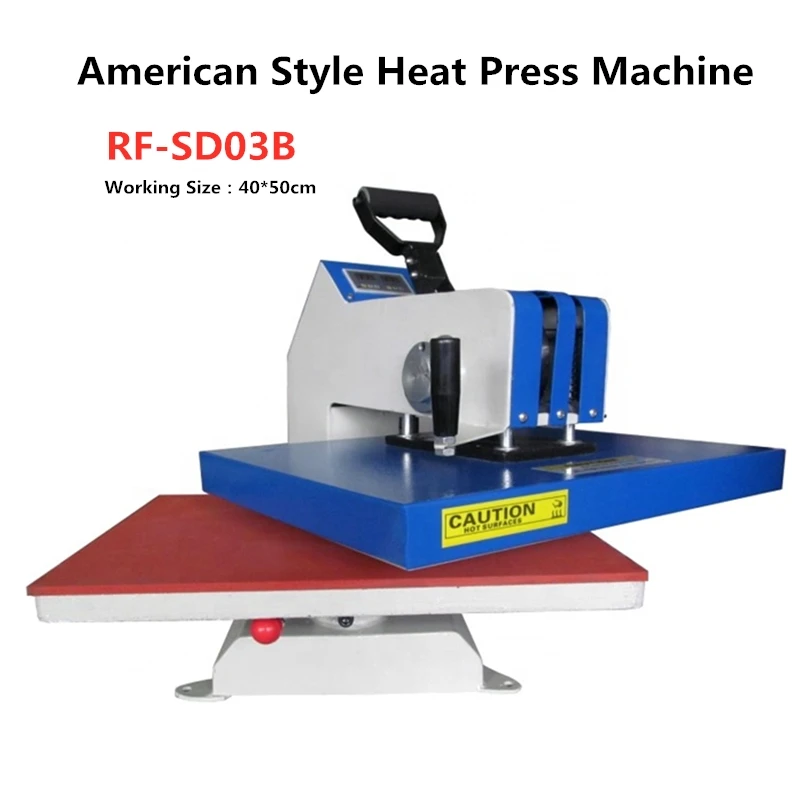

RF-SD03B	40x50cm	110v/220v	2800W	0-399 °C	0-999Sec	75.5*67.5*60.5cm	60kg

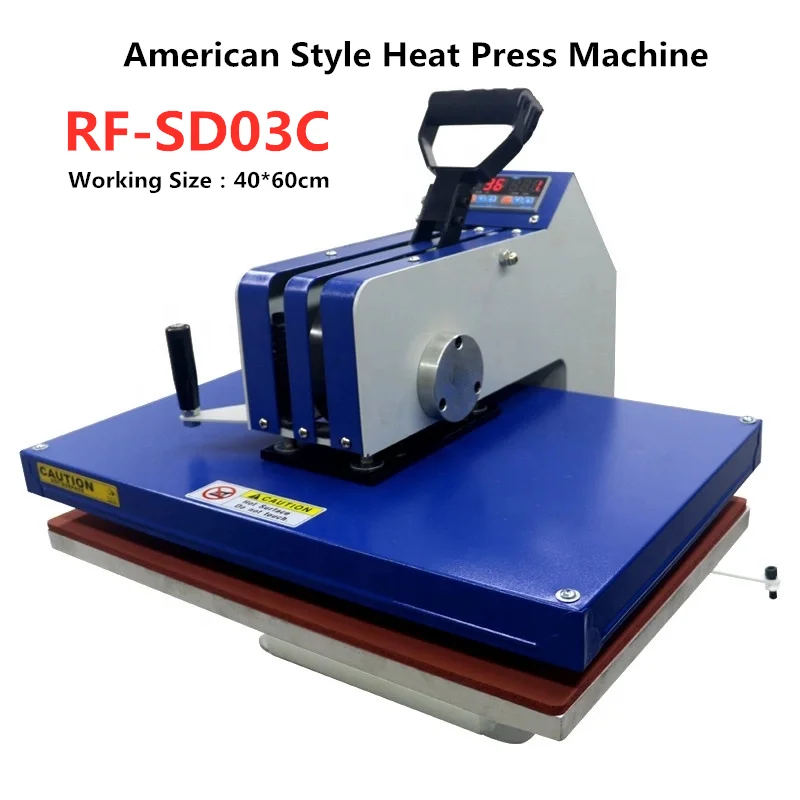

RF-SD03C	40x60cm	110v/220v	3500W	0-399 °C	0-999Sec	75.5*67.5*60.5cm	65kg

Heat press machine can heat transfer colorful images and characters onto ceramics,glasses and textiles such as cotton, flax,chemical fiber, nylon, ect. The thermal transfer machine can also conduct some heat treatments such as hair-planting print, vesicant print and conglutination of cloth lining and cloth under low temperature and low pressure. It can be used for T-shirts, mouse mats,sports clothes,swimwears,bags,scarves ,logo ,umbrellas,pillow cases,socks, jigsaw puzzles, ceramic tiles, ID badges,,vip cards,personalized gifts,rock painting,rhinestone,glass photos,metal sheet,aluminum sheet,and so on.and each flat surface items can be printed as long as you want dye sublimation.  Please note:Users should operate the machine with ground wire connected for safety! 1.Check the voltage before using it.Then turn on the power supply! 2.Plug in,turn on the power switch of machine,the power indicator lightened. 3.Set the temperature needed (Normally 120-200ºC),set the timer to the needed.(Normally 5~20Second). 4.Place the clothes to the main plate,cover the printing paper(please note the right surface of the paper).Pull it down. 5.When the time come down to over,the buzzer alarms,Push it up. 6.If it is cold-ripping of the transfer paper,please use blackboard wiper to rub against the whole transfer paper,wait for 5-10 seconds,then rip off the transfer paper.If it is the hot-ripping of the transfer paper,you can rip off immediately after printing.   Please note : successful print requires right time,temperature and pressure,the thickness of the clothes material,even the type of printing paper,all will affect the performance of printing.Any kind of sublimation paper need test before mass production.

---
